友谱UPX-CF4糕点面包自动料理包装线
Color:Sliver Capacity:30-180 package one minute Voltage:220V 50hz Dimension:4000*950*1600mm

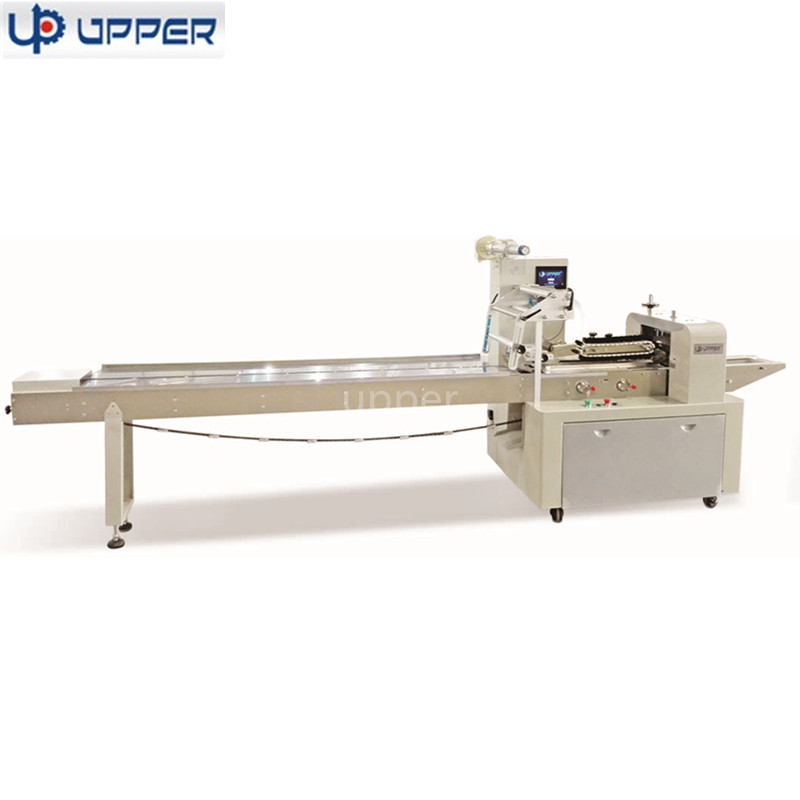

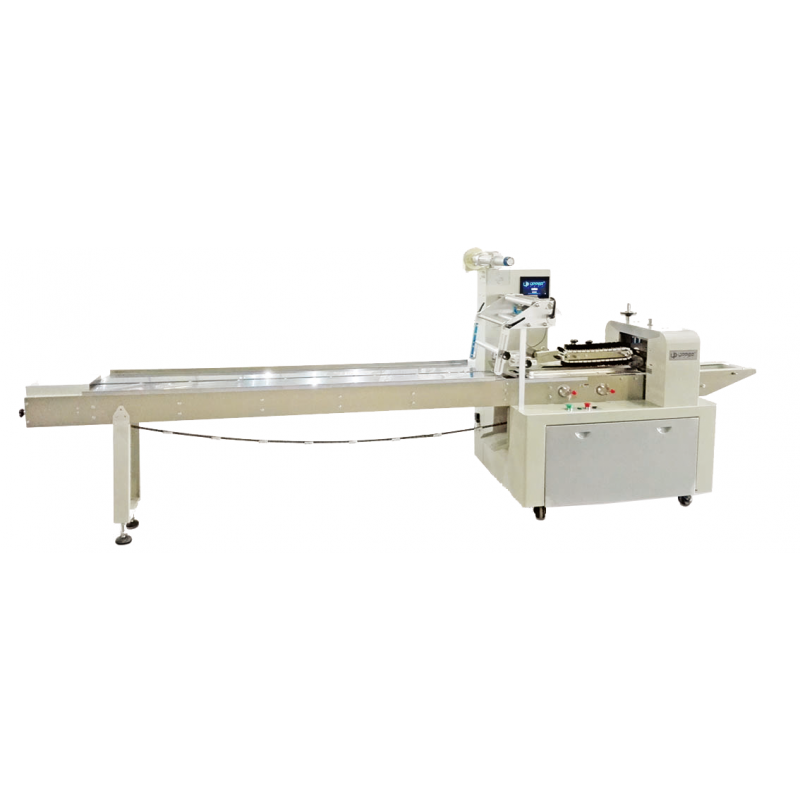

UPB-450 HORIZonTAL AUTOMATIC PACKAING MACHINE

Product details


APPLICATION RANGE

Applicable for packing various regular solid products, such as moon cake, bread, biscuit, candy, cake, custard pie, fruit pie, medicine, plastic goods, paper box or any others loaded in tray.

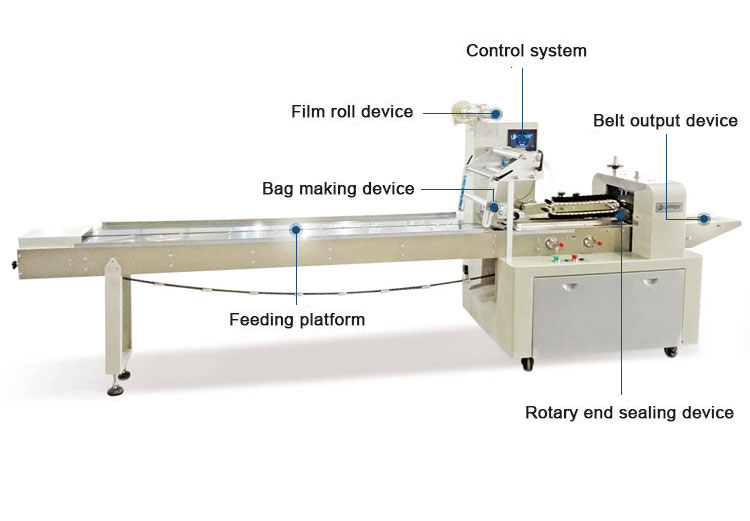

MAIN features
1. Compact mechanical structure design, double inverter control, stable running, easy repair and maintenance, less breakdown and low noise.
2. With superb intelligent touch screen and individual digital display temperature control system, it is simple to set parameters and convenient to change product size.
3. Brand color code photo sensor tracking system is available to ensure accurate sealing, cutting position and high control accuracy.
4. Rational electrical design for simple control, improving stability.
5. Simplified mechanical structure design for simple adjustment, improving production efficiency.
TECHNICAL SPECIFICATION
MODEL:upb-450
Bagging size:L120-500MM;W:35-200MM:H:5-70MM
Packing capacity:32-160bags/min
Packing film width:90-450mm
Packing film:Laminated film such as OPP/PE,OPP/CPP,etc.
Power supply type:1ph 220V 50hz
Total power:3.2kw
machine weight:650kg
Machine dimensions:4000*950*1600mm
